XE-Non Reinforced Vinyl Barriers

  • Home
  • /
  • Acoustical Vinyl Barrier
  • /
  • XE-Non Reinforced Vinyl Barriers

Key Features

  • XE-200

    • 2 LB/SF non-reinforced vinyl barrier
    • Thickness: ¼”
    • STC: 33
  • XE-100

    • 1 LB/SF non-reinforced vinyl barrier
    • Thickness: 1/8”
    • STC: 26
  • XE-50

    • 0.5 LB/SF non-reinforced vinyl barrier
    • Thickness: 1/16”
    • STC: 20

Product Specification

Material Non-reinforced vinyl barrier is commonly used in new construction installed directly to the studs
Color Black

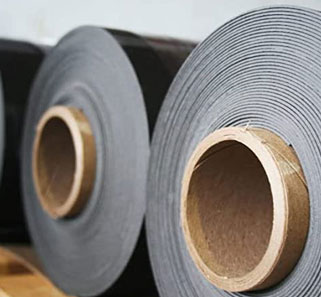

Roll Size 54” x 60’ (270 sf) or 54” x 30’ (135 sf).
Flamability Self Extinguishing
New Construction applied to the wall, ceiling, or floor framing before the finished surface is applied
Existing Surfaces applied to the existing surface and then covered with a layer of finishing material. We recommended separating the material surfaces from one another using furring strips or resilient channels to further isolate vibration related transmissions.

Applications

  • Floors, Ceilings, Walls
  • Residential Acoustics
  • Industrial Acoustics
  • Pipe Lag

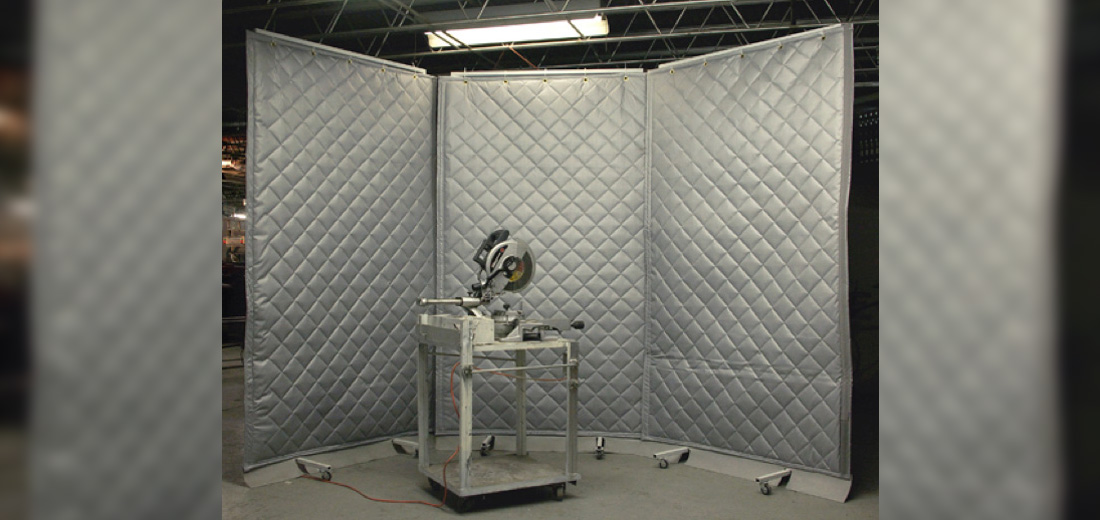

  • Acoustical Curtains
  • Acoustical Doors
